Laser Cut SMT Stencil

Eltron can also offer you the facility to have SMT Laser cut Stainless Steel Stencil manufactured and delivered in dual process with your PCB’s – reducing any risk.

SMT Laser Cut Stencils can be supplied from 3 working days including your PCB’s

Tooling Holes
Part Number identification
Frame Mounting feature
Foil Tensioning SMT Printer compatibility

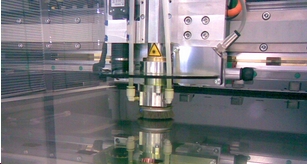

circuit board laser cut

Low cost Non Mounted frames are also available which suit low cost Prototype and NPi requirement

Our Laser cut “Foil” stencils are available in 100um and also 150um thickness.


Stencil Thickness requirement:
Stencil dimension “X” and “Y” requirement:
Specific Tooling / Mounting requirement
